The Induction Furnace developed by LIWEI is designed for high-efficiency, environmentally friendly metal melting, especially in steelmaking lines that rely on scrap steel. Utilizing medium-frequency electromagnetic induction (50–2000 Hz), the furnace enables fast melting, precise temperature control, and stable metallurgical quality. Available in capacities from 2.5t to 15t, each unit comes with a complete control and cooling system, offering compact layout, energy savings, and lower emissions. With more than 30 years of field experience, LIWEI ensures reliable solutions for both standard and customized melting requirements.
Each LIWEI induction furnace includes all essential components—power inverter, reactor, capacitor group, water-cooled cables, and HMI-based control desk. The system also features leakage detection, hydraulic tilting, and smart monitoring to ensure safe and steady operation.
Compared to arc furnaces, this system offers shorter melting cycles and higher energy efficiency while producing less noise and emissions. Its compact footprint is ideal for facilities with limited space, and its low-maintenance design keeps long-term operating costs down.
Whether using scrap steel, pig iron, or alloy additives, the furnace maintains uniform heating and minimizes alloy element loss. Built-in water-cooling and stainless-steel protection extend equipment lifespan even under continuous-duty conditions.
Parameter | Value |
---|---|
Available Capacities | 2.5t / 5.0t / 8.0t / 10.0t / 12.0t / 15.0t |
Rated Temperature | 1600°C (all models) |
Max Tapping Volume | Up to 18.0t |
Melting Rate Range | 2.4–11.2 t/h |
Frequency | 50–2000 Hz |
Cooling Method | Internal Water Cooling, Back-Flush Filter |
Control Interface | HMI + Remote Console |
Furnace tons Specification | 2.5t | 5.0t | 8.0t | 10.0t | 12.0t | 15.0t | Remarks |
Rated tapping(t) | 2.5 | 5.0 | 8.0 | 10.0 | 12.0 | 15.0 | |
Maximum tapping(t) | 3.5 | 6.5 | 10.0 | 12.0 | 14.0 | 18.0 | |
Rated tapping temperature(ºC) | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | |
melting rating(t/h) | 2.4 | 4.9 | 7.8 | 9.5 | 11.2 | 1 |
NO. | Name | quantity | unit | Remark |
1 | electric furnace | 2 | set | |
2 | Inverter power supply control device | 1 | set | |
3 | reactor | 1 | set | |
4 | capacitor | 1 | group | |
5 | mechanical furnace-shifting switch | 1 | set | |
6 | hydraulic system | 1 | set | |
7 | electricity leakage alarm system | 1 | set | |
8 | internal model | 1 | PCS | |
9 | water-cooled cable | 1 | set | |
10 | remote control desk | 1 | set |
Furnace ton price | 2.5t | 5.0t | 8.0t | 10.0t | 12.0t | 15.0t |
price(USD) | 72000.0 | 114000.0 | 171000.0 | 186000.0 | 200000.0 | 257000.0 |
The system delivers consistent smelting results with minimal delay between batches. Electromagnetic heating ensures optimal thermal transfer and allows better control of steel chemistry and tapping temperature.
From 2.5t to 15t, the system can be configured for various output needs. It uses significantly less electricity per ton melted compared to traditional furnaces, helping reduce production cost over time.
From furnace body to remote control and automation, every part is designed to work as a coordinated system. This integration reduces installation complexity and enables smoother startup and operation.
![]() |

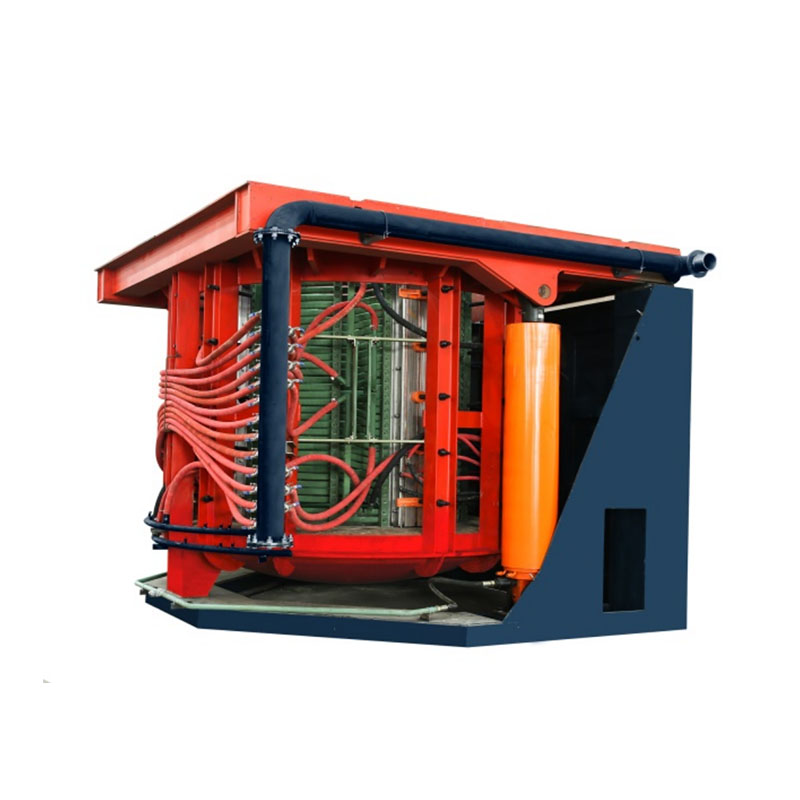

Induction furnace bod |
![]() | ![]() |

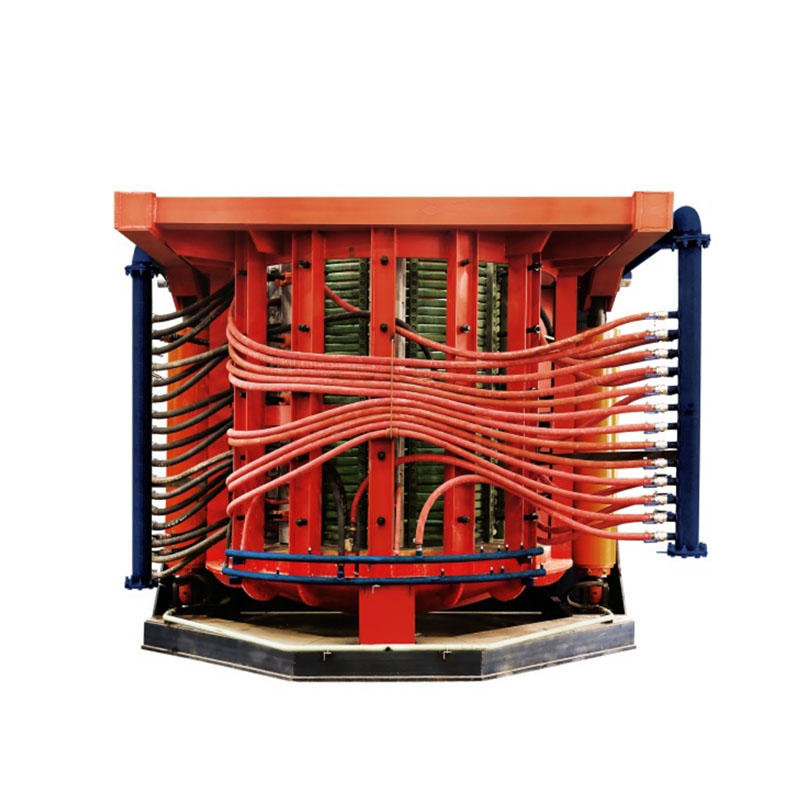

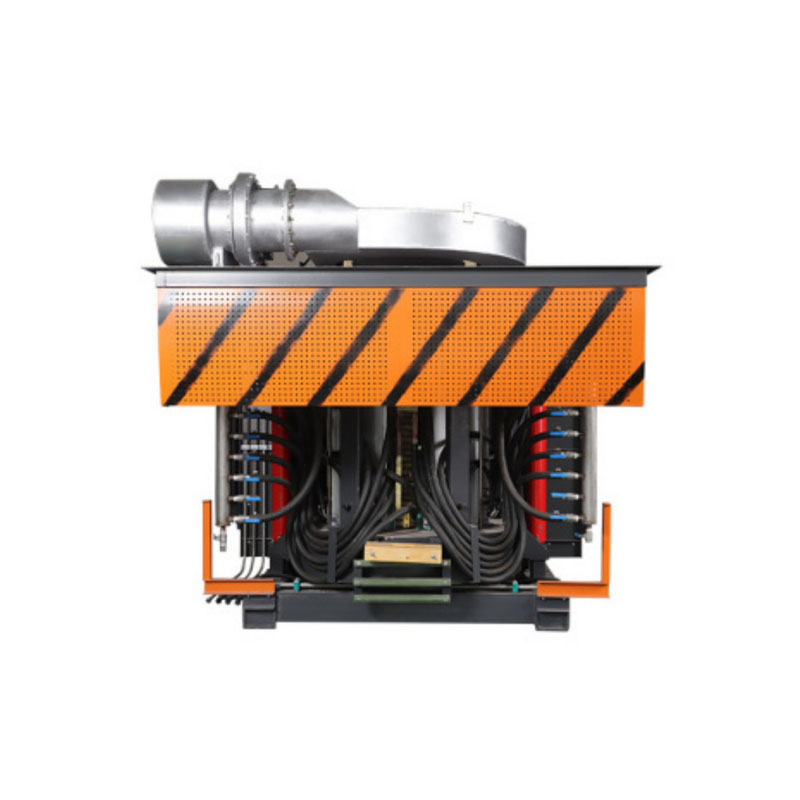

Induction furnace body |
![]() | ![]() |

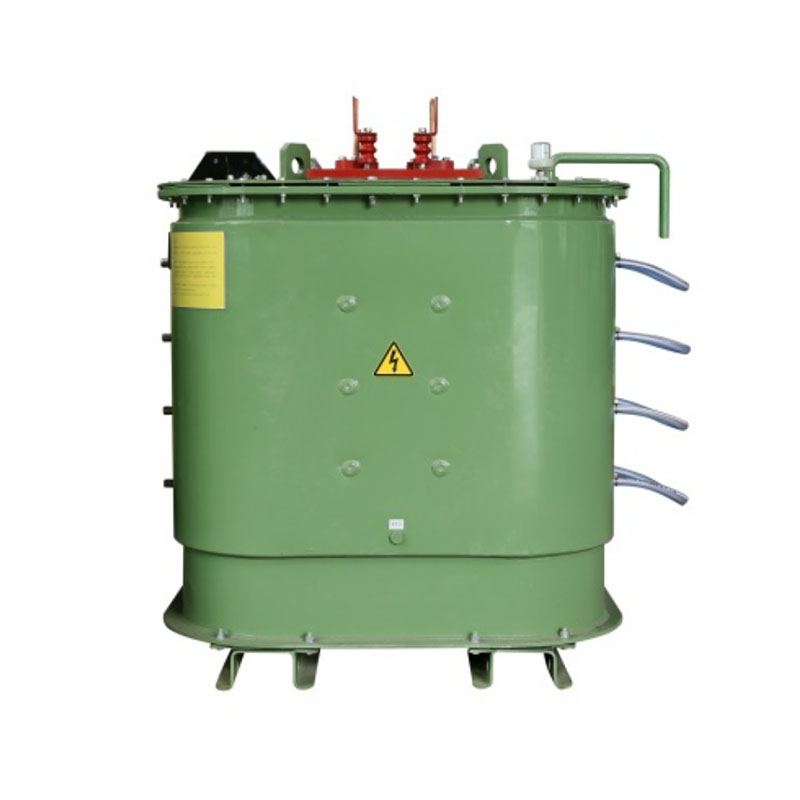

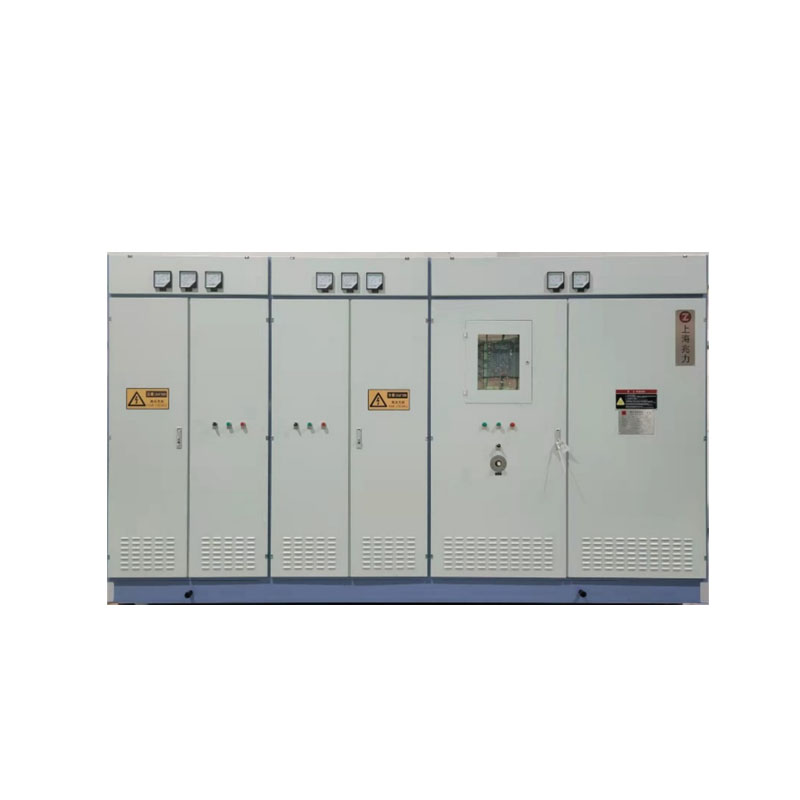

Intermediate Frequency Power Device | Oil immersion reactor |
![]() | ![]() |

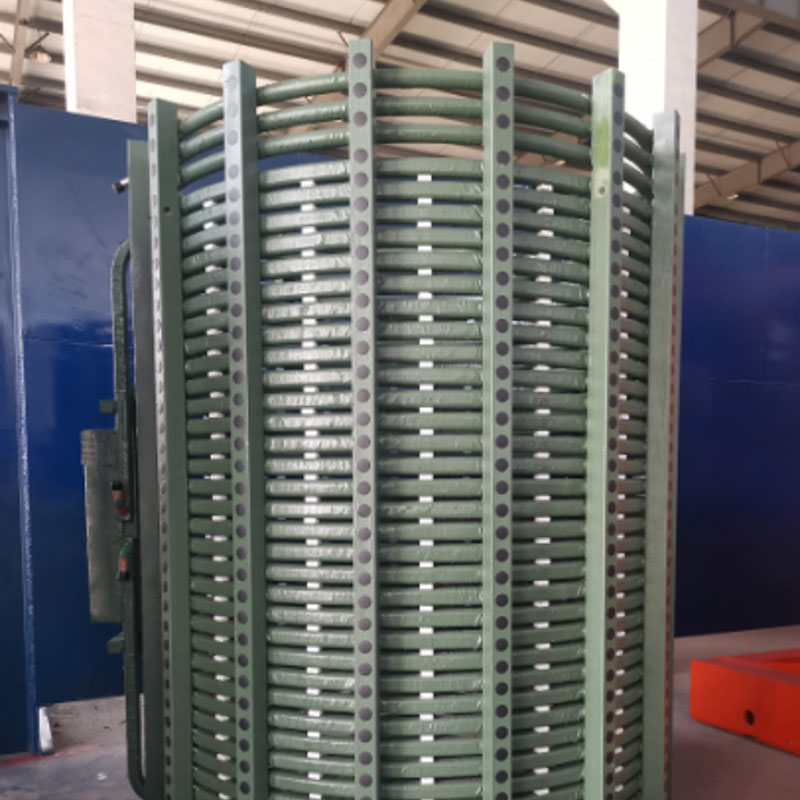

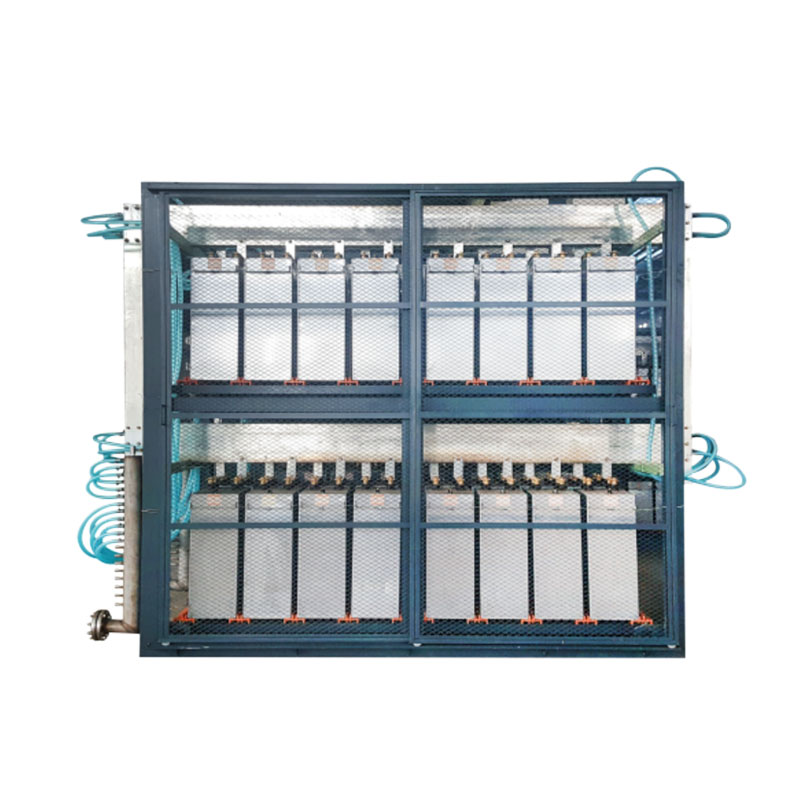

Inductor | Capacitor group |
