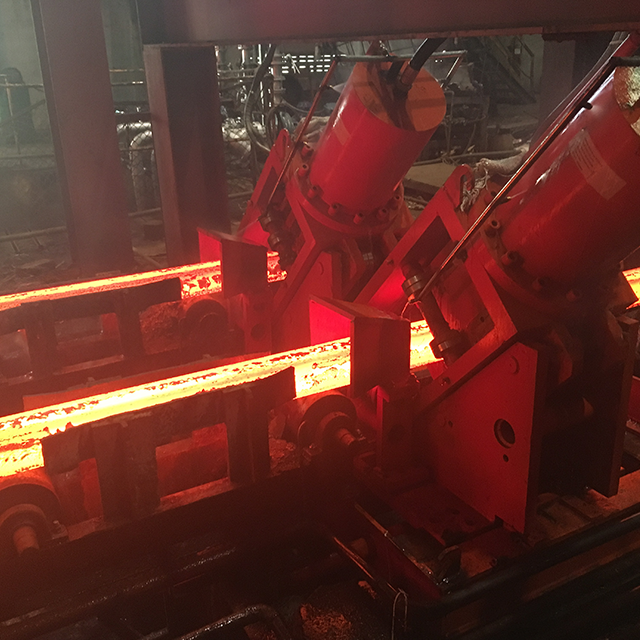

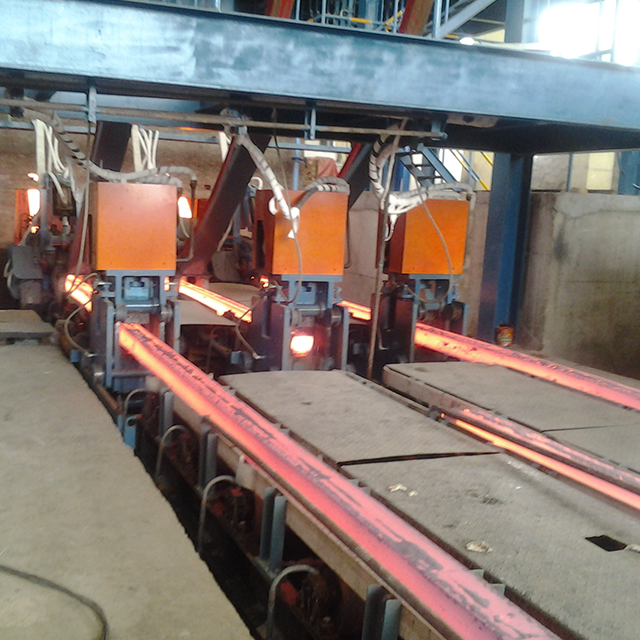

The billet hydraulic shear machine is used to synchronously cut the continuous casting billet online. Its main feature is faster and more convenient, compared to the traditional flame cutting way, mainly reflected in the energy saving aspects of enterprises. It can save oxygen with no gas consumption, improve the yield of continuous casting billet with no continuous casting billet loss. Our company's hydraulic shear is mainly divided into vertical and 45 degrees diagonal shear. Both upper and lower blades of the 45º diagonal shear can move, which greatly reduces the billet cut end deformation. For this reason, most users use the 45º diagonal shear to cut the billet.
The technical data of the 45º diagonal shear are as follows.
1. cut billet size: 70mm*70mm-180mm*180mm
2. cut speed range: 1-3.5m/min
3. hydraulic cylinder cut force: 50-400 tons
4. cut through time: 6-12s/times, adjustable
5. Outline dimensions: 2200mm(length)*1100mm(width)*1250mm(height), variable according to the steel billet size
6. erection height: 1260mm
