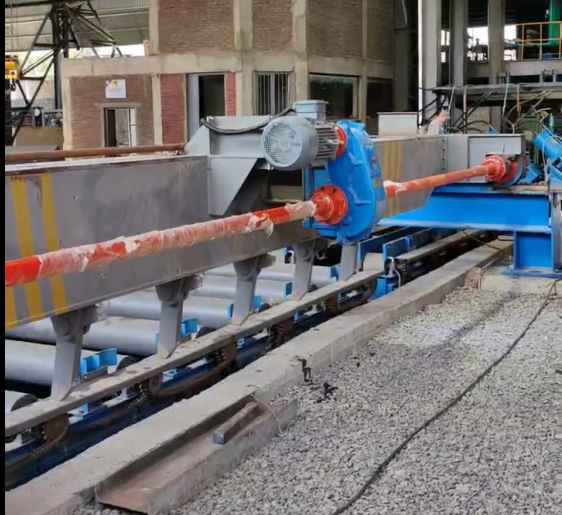

The continuous casting billet pusher is used to move the billets from each strand of the continuous casting machine to the common cooling bed for the billet cooling and piling up. The pushing trolley is composed of three parts, including the support mechanism, the trolley body and the control system.
The steel pusher support mechanism is composed of columns, supporting beams, rails and accessories.

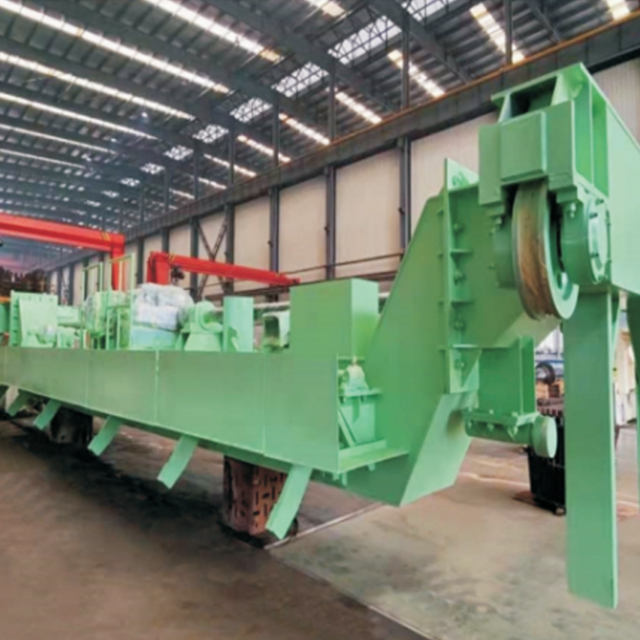

The pusher trolley body is composed of end beam, web beam, finger, drive system and synchronous mechanism. The drive system mainly includes a motor, a reducer, a receiver, a transmission shaft, a roller. And the synchronous structure mainly includes a gear and a rack.
The control system mainly includes electric control cabinet, operating console, cables and accessories.
The billet pusher design depends on the billet size and the continuous caster strands. The drive has two types, single drive and double drive. And the finger also has two types, swinging ones and lifting ones.
