The shift toward induction heating for scrap recovery is accelerating across the industrial sector. Plant operators demand precise metallurgical control, lower melt loss, and reduced carbon emissions. Eliminating direct flame exposure drastically reduces oxidation. This directly improves yield when processing sensitive metals like aluminum or copper. Improper equipment sizing introduces severe operational risks. Mismatching furnace frequency, power density, or refractory type to specific scrap profiles causes cascading failures. You will see excessive energy consumption, premature refractory wear, and compromised throughput. Light gauge turnings behave entirely differently under an electromagnetic field than heavy melt steel. Plant managers, metallurgists, and procurement engineers need a rigorous technical evaluation framework. This guide navigates the complexities of induction furnace selection to align equipment specifications directly with production targets.
Scrap Profile Dictates Frequency: The physical size and density of the scrap metal strictly determine the optimal operating frequency; lower frequencies provide the necessary electromagnetic stirring for light scrap, while higher frequencies suit smaller, denser charges.
Capacity vs. Melt Rate: Selecting a furnace based solely on crucible capacity is a common error; evaluation must prioritize the actual melt rate (kg/hour or tons/hour) aligned with downstream casting or processing bottlenecks.
Scale Determines Architecture: Equipment needs vary drastically from 1–3 kg units for retail bench scrap and precious metals to high-volume, tonnage-class systems for industrial scrap metal recycling.
Refractory and Build Integrity is Critical: Build quality, specifically wall and insulation thickness, weld integrity, and the type of refractory lining (acidic, basic, or neutral), directly impacts thermal efficiency, slag management, and operational uptime.
Lifecycle Costs Outweigh CapEx: Initial purchase price is secondary to long-term energy efficiency (kW/ton), cooling system reliability, and maintenance requirements when calculating ROI.
Table of Contents
Define clear energy consumption, melting loss and uptime benchmarks before selecting an induction furnace. Unlike gas and oil furnaces that waste heat through flue exhaust and contaminate molten metal, induction heating delivers direct electromagnetic energy transfer for higher efficiency and cleaner metallurgy. Standard optimized steel melting performance ranges from 500–550 kWh/ton, while inefficient operation at 700 kWh/ton drastically cuts profits. Induction technology also reduces aluminum oxidation loss from 10–15% in fuel furnaces to below 2%. These fixed performance metrics serve as the core standard for furnace procurement.
Ferrous and non-ferrous metals demand fundamentally different melting approaches. Steel and iron possess high melting points and high magnetic permeability at room temperature. They require robust refractory linings capable of withstanding extreme thermal shock and aggressive slag chemistry. Copper, aluminum, and brass melt at lower temperatures but conduct heat rapidly. The physical form of the scrap dictates the required crucible design and power density. Baled scrap requires a wide crucible opening to prevent bridging. Bridging occurs when large pieces jam at the top of the crucible, while the metal below melts. This creates a dangerous superheated bath at the bottom that can rapidly erode the refractory lining. Loose turnings need strong electromagnetic stirring to submerge quickly before oxidizing. Heavy solids demand high power density to penetrate the core of the material. Scale dictates the entire system architecture. Retail bench scrap operations utilize 1–3 kg capacities for gold or silver buy-backs. High-volume industrial scrap metal recycling requires tonnage-class systems with automated charging mechanisms. You cannot simply scale up a small furnace design and expect it to perform in a heavy industrial environment. The mechanical stresses, thermal loads, and electrical demands change exponentially as crucible capacity increases.
Never select a furnace based solely on its static crucible capacity. Focus entirely on the true melt rate. Over-sizing the equipment wastes massive amounts of energy. You end up holding molten metal unnecessarily while waiting for downstream processes. Under-sizing starves continuous casting machines or molding lines, causing production bottlenecks. Match the furnace's melt rate precisely to the consumption rate of your facility. Consider installing dual crucibles powered by a single power supply. This allows one crucible to melt while the other pours, maximizing power utilization.
To calculate the true melt rate accurately, follow these steps:
Determine the total poured weight required per shift, factoring in sprue, runner, and gating system weights.
Calculate the available melting time by subtracting all operational dead time from the total shift duration.
Account for charging time, which varies heavily based on whether you use manual loading, vibratory conveyors, or drop-bottom buckets.
Factor in the time required for temperature sampling, chemical analysis, and alloy adjustments.
Include the time required for slag removal, which increases significantly when processing dirty or heavily oxidized scrap.
Subtract the actual pouring time, as the furnace cannot melt at full power while tilted for tapping.
Divide the total required weight by the net available melting time to establish your absolute minimum kg/hour requirement.
When specifying an Induction Furnace for Scrap Melting, operating frequency remains the most critical variable. Frequency dictates the depth of electrical current penetration into the scrap. Lower frequencies penetrate deeper into the charge. This creates violent electromagnetic stirring within the molten bath. Strong stirring homogenizes complex alloys effectively. It also rapidly draws light scrap, like aluminum cans or copper wire, under the melt surface. Submerging light scrap quickly minimizes oxidation and metal loss. Higher frequencies suit smaller, denser charges. They provide faster melting for small pieces but generate significantly less bath agitation. Selecting the wrong frequency leads to either excessive refractory wear from over-stirring or poor alloy mixing from under-stirring. If you process loose, oily steel turnings, you need a medium-to-low frequency to pull the chips down instantly. If you melt dense, heavy steel billets, a higher frequency might melt the surface too quickly while leaving the core solid.
Frequency Range | Typical Scrap Profile | Stirring Intensity | Penetration Depth | Ideal Application |
|---|---|---|---|---|
Mains (50-60 Hz) | Heavy solids, large bales | Very High | Deep | Large cast iron foundries, heavy steel scrap |
Medium (200-1000 Hz) | Mixed scrap, turnings, shredded | Moderate to High | Medium | General industrial scrap recycling, versatile foundries |
High (1000-10000 Hz) | Small bench scrap, precious metals | Low | Shallow | Retail jewelry buy-backs, small precision casting |
Modern induction furnaces adopt IGBT and SCR power supply technologies for precise, fast heating control. Efficient models feature optimized copper busbars and coil layouts to minimize energy loss, maintaining a power factor above 0.95 throughout the melting process to avoid grid penalties. Equipped with multi-pulse rectifiers to reduce harmonic interference, advanced inverters automatically track resonant frequency, sustaining maximum power output even with changing scrap conditions and worn refractory, unlike outdated power systems with unstable energy performance.

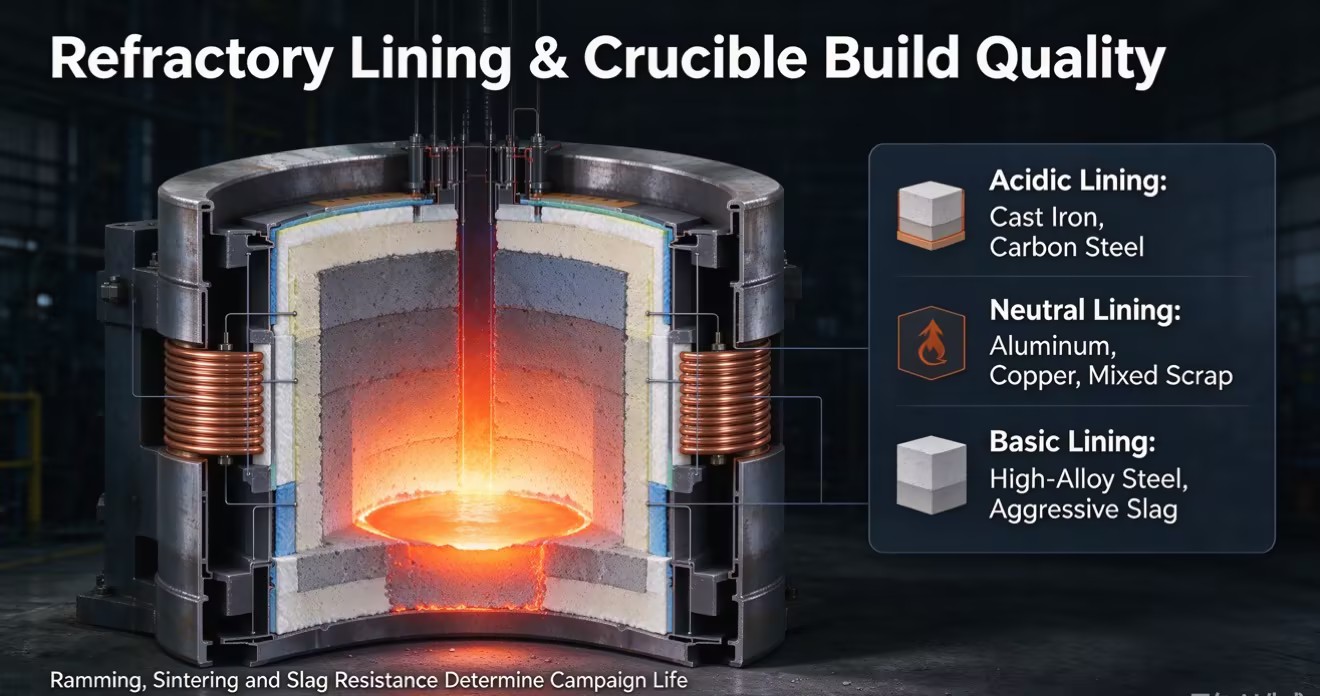

Durable furnace construction relies on a rigid steel frame, solid welding, thick insulation and anti-vibration coil & magnetic yoke structures to prevent refractory damage and electrical faults. Different refractory linings match diverse melting materials: silica acidic linings for cast iron, magnesia basic linings for high-alloy steel, and alumina neutral linings for mixed scrap. Slag properties affect lining wear, and professional installation with standard ramming and sintering processes effectively extends the service life of crucible refractory.
Refractory Type | Primary Material | Target Metal | Slag Compatibility |
|---|---|---|---|
Acidic | Silica | Cast Iron, Carbon Steel | Acidic slags, high resistance to thermal shock |
Basic | Magnesia | High-Alloy Steel, Manganese Steel | Basic slags, excellent for aggressive chemical environments |
Neutral | Alumina | Aluminum, Copper, Mixed Scrap | Versatile, resists metal penetration well |
Furnace selection should prioritize long-term energy performance over low upfront cost. High-efficiency furnaces adopt optimized coil structures and thick insulation to reduce heat loss and lower kWh/ton consumption. Basic low-cost models waste massive power due to poor thermal design and inefficient cooling circulation. Calculate annual energy consumption based on production volume; even a small per-ton power increase will far exceed initial cost savings over time. Optimized water circuit designs also reduce pump load and cut overall plant energy use.
Induction furnace key parts including coils, cooling cables and refractory linings require periodic inspection and replacement. The slag line suffers the most severe erosion and needs regular patching. Push-out refractory systems shorten relining downtime. Cracked coil grout causes metal penetration and fatal coil damage. Magnetic yokes must be well-maintained to stabilize magnetic fields and prevent frame overheating. Reliable OEM spare part support reduces unplanned shutdowns and ensures long-term safe and stable operation.
Large induction furnaces generate unstable and high current loads, requiring isolation transformers and harmonic filters to avoid grid interference and damage to nearby precision equipment. A closed-loop deionized water cooling system is essential for coil protection. Plants must monitor water conductivity, pressure and temperature in real time, and equip dual pumps plus emergency backup power. Power failure with molten metal in the crucible will boil stagnant cooling water, causing coil rupture and dangerous steam explosions.
Melting contaminated, painted or oily scrap produces heavy smoke and VOC emissions. Factories must install lip hoods, canopy hoods, baghouses and high-speed exhaust systems during initial setup instead of later retrofits. The ventilation system must match crucible size and scrap pollution levels to fully contain fumes and dust. Undersized extraction leads to toxic operator exposure and flammable oil residue accumulation on plant equipment.
Modern induction furnaces adopt multiple safety and automation designs. Ground leakage detectors cut power automatically to prevent molten metal contact with coils. Automated tilting and controlled conveyor feeding avoid splashing and manual high-risk operation. PLC real-time monitoring and gravity emergency cooling tanks prevent equipment failure during power outages. Automation keeps operators away from the high-temperature melting zone and improves overall production safety.
Successful equipment deployment requires a precise match between the metallurgical properties of the scrap, the facility's production demands, and the furnace's technical specifications. Overlooking the relationship between scrap density and operating frequency results in severe operational inefficiencies. Prioritize manufacturers that offer transparent performance guarantees, robust refractory support, and proven power supply reliability. Assess vendor reputation and engineering capabilities to ensure long-term aftermarket support.
Take the following actionable steps to finalize your selection process:
Conduct a comprehensive facility power audit to determine available capacity and harmonic limits.
Perform a detailed scrap audit to define the exact density, chemistry, and volume of your feed material.
Request metallurgical test melts from shortlisted vendors using your specific scrap profile.
Draft a strict Request for Proposal (RFP) that includes guaranteed kWh/ton metrics and required melt rates.
Evaluate the vendor's local service network and spare parts availability for emergency support.
A: The optimal frequency depends entirely on scrap size and density. Medium frequency (500-1000 Hz) serves as the industry standard for general scrap. Lower frequencies (50-200 Hz) are used for large, heavy charges requiring high bath agitation. High frequencies (over 1000 Hz) suit small, dense pieces.
A: Induction heating lacks direct flame exposure. This prevents excessive oxidation and metal loss. It transfers energy directly into the metal, making it vastly superior for sensitive or light scrap like aluminum and copper. Induction also provides precise temperature control and lower emissions.
A: Divide the total required daily output by the number of operational hours. Factor in the dead time required for charging, slagging, temperature sampling, pouring, and daily maintenance. Focus on the continuous melt rate rather than just the static crucible volume.
A: A 1–3 kg class furnace is typically sufficient for retail shops, jewelry buy-backs, or small precision casting. Industrial recycling and foundry operations require tonnage capacities ranging from 500 kg to over 20 tons to maintain viable throughput.
A: A highly efficient system consumes roughly 500-600 kWh per ton for melting cast iron or steel. Efficiency varies significantly based on scrap quality, moisture content, refractory insulation thickness, and the specific power supply design.
A: Low-density scrap, such as loose turnings, requires furnaces with strong electromagnetic stirring. This violent agitation pulls the light material into the molten bath quickly, reducing surface oxidation and minimizing overall melt loss.
A: While the core technology can melt both, switching between them in the same crucible is highly impractical. Cross-contamination risks are severe. Furthermore, ferrous and non-ferrous metals require completely different refractory lining materials to survive their respective melting temperatures and slag chemistries.
